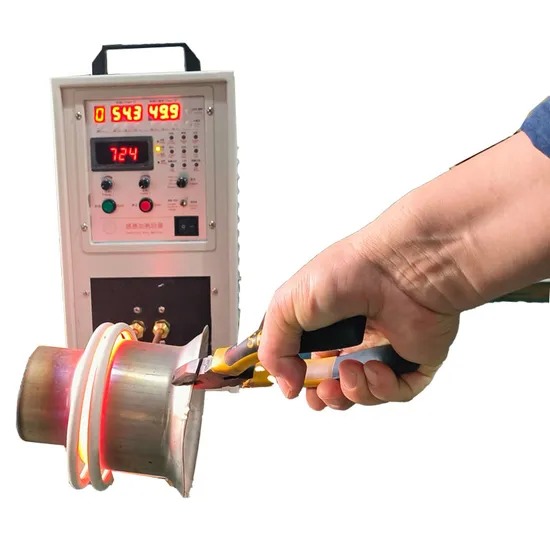

China Manufacturer Support HF-25KW Induction heating machine for metal sheets, metal pipes, strips:
Induction Heating Machine:
Induction heating is a process which is used to bond, harden or soften metals or other conductive materials. For modern manufacturing processes, induction heating offers an attractive combination of speed, consistency, control and energy efficiency.
The basic principles of induction heating have been understood and applied to manufacturing since the 1920s. During World War II, the technology developed rapidly to meet urgent wartime requirements for a fast, reliable process to harden metal engine parts.
More recently, the focus on lean manufacturing techniques and emphasis on improved quality control have led to a rediscovery of induction technology, along with the development of precisely controlled, all solid state induction power supplies.
How induction heating works?
When an alternating electrical current is applied to the primary of a transformer, an alternating magnetic field is created. According to Faraday's Law, if the secondary of the transformer is located within the magnetic field, an electric current will be induced.
In a basic induction heating setup, a power supply sends an AC current through an inductor (often a copper coil), and the part to be heated (the workpiece) is placed inside the inductor. The inductor serves as the transformer primary and the part to be heated becomes a short circuit secondary. When a metal part is placed within the inductor and enters the magnetic field, circulating eddy currents are induced within the part.
Main characteristics:
1)Infineon IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2) 100% Duty cycle, continuous working is allowed at maximum power output.
3) Display of heating power and heating current and oscillating frequency.
4) Simple to install, Installation can be done by unprofessional person very easily;
5) Light weight
6 ) Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
7) The separated models are designed to fit the dirty surrounding of some cases.
8)Heating time can set 1-999S also can set 0.1-99.9S.
9)Water pressure meter install the machine, can check water pressure at the meter, easy to know whether your cooling system is enough or not.
10) Energy Saving Up to 20-30% compare with SCR machine.
11) Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
12) 4 Different working modes:
P0: Means work at the manual, the machine will Sequential timing, Timer 1 shows the heating time, Timer 2 shows working frequency, when you Press, then the machine stop it. If use the Foot Switch, Step On the Foot Switch not loose it, then the machine is working, loose the foot switch, then the machine stop heating.
P1: Means Work at time we set it before heating, Timer 1: means heating time( this is countdown count time, Timer 2: Display Working Frequency. For example: If you set heating time 20S, the machine will countdown count time, when finish 20S then stop the machine automatically. If use the foot switch, Step on the foot switch then loose is at once, the machine is working, when finish the heating time that we set, then the machine stop it automatically.
P2: 2 Sections Heating( Section 1 for heating, section
Technical parameters of the equipment:
| Type | HF-25AB/25A |
| Work Power | 3*380v/415v/440v/480v 50-60hz |
| The range of operating voltage | 340-430V AC |
| Output power | 25KW |
| Input current | 32A |
| Fluctuating frequency | 30-80khz |
| Timing (Heat time,Retain time,Cool time) | 1-99S |
| The flow rate of cooling water | 0.15 Mpa 9L/Min |
| Water temperature protection point | 40centidegree |
| Duty cycle | 100% (40degree room temperature) |
| Weight | Mainparts:42Kg |
| Size | Main Parts:640*280*550mm
|
The Applications of the equipment:
Customer feedback on our equipment:
Pre-sale service: 1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory. In-sale service: 1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time. After-sale service: 1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
